HRC Mini-Z Arena

BZ Master Edition 4WD Chassis Kit (No electronics)

數量

簡介

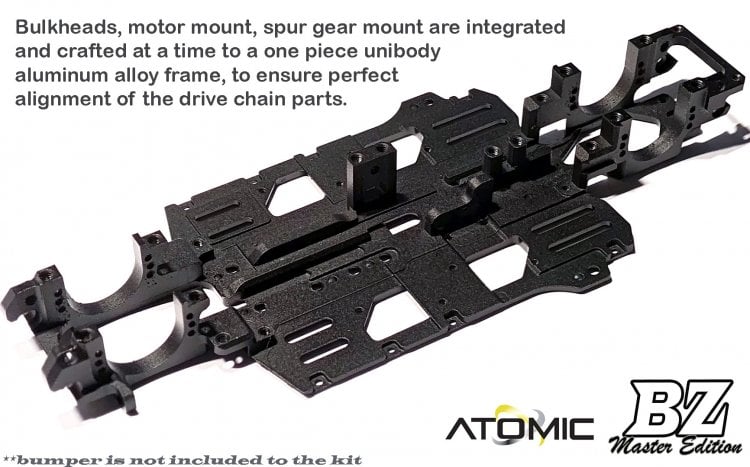

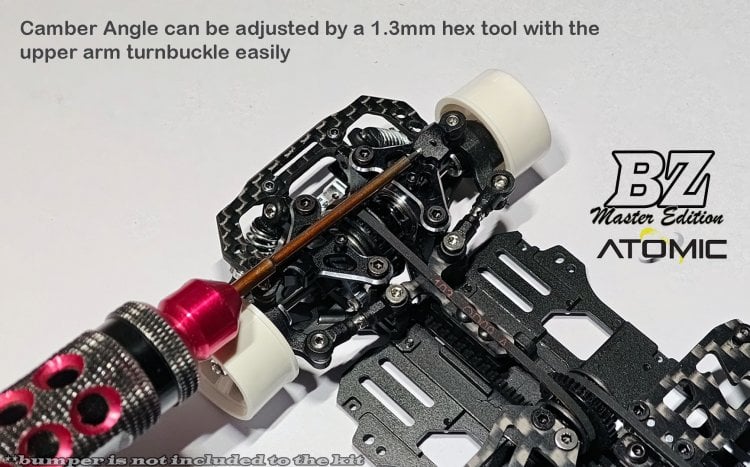

+ Here we present you with the most advanced of our AWD competition machine BZ Master Edition. After years of experience and listening to racers opinion around the world; We now fully re-design our winning belt drive 4wd chassis What is new in BZ Master: - New main frame which integrated the front and rear bulkhead, spur gear mount, motor mount and the chassis plate. All these parts are crafted in a single 7075 alloy to make sure the perfect alignment of the drive chain parts. - 50:50 mid belt design: equal belt length of front and rear to have more on power steering. - CNC made Ball-head type suspension system; wobble and slop is significantly reduced. - Quick adjustment of the camber angle thru the turnbuckle screw on upper arm. - All suspension arms are made 7075 alloy, provide extra rigidity and stability in large super high-speed tracks. -Active Rear Toe system, easy adjustment of the rear toe angle and you can change the mid corner rear grip of the rear by adding or reduce shims. - Come with aluminium chassis with ability to add side wings and mass weights (optional parts) to reduce the chance of traction roll and add stability - Servo mount is compatible with slim or normal size servo (8.0mm to 11.5mm thick) - 24mm wide battery compatible. - Sway bar system (with bearing support) will be available in options - Front caster angle adjustable (with shims on the lower front arm) - Front width is 74mm with Narrow Wheels (N-8.5mm 0 offset) - Rear width is 76mm with Wide Wheels (W-11mm 0 offset) Buy It Now Model: BZM-KIT Shipping Weight: 200 grams Manufactured by: Atomic
